Oscilloscopes

KEYSIGHT - DSOX1202A [70 MHz]Keysight’s InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it’s easy to get professional measurements and accessible expertise at your fingertips. Don’t settle for less – and test to impress.Key features:70 MHz bandwidth See more signal detail with 200,000 waveforms/sec update rate Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration

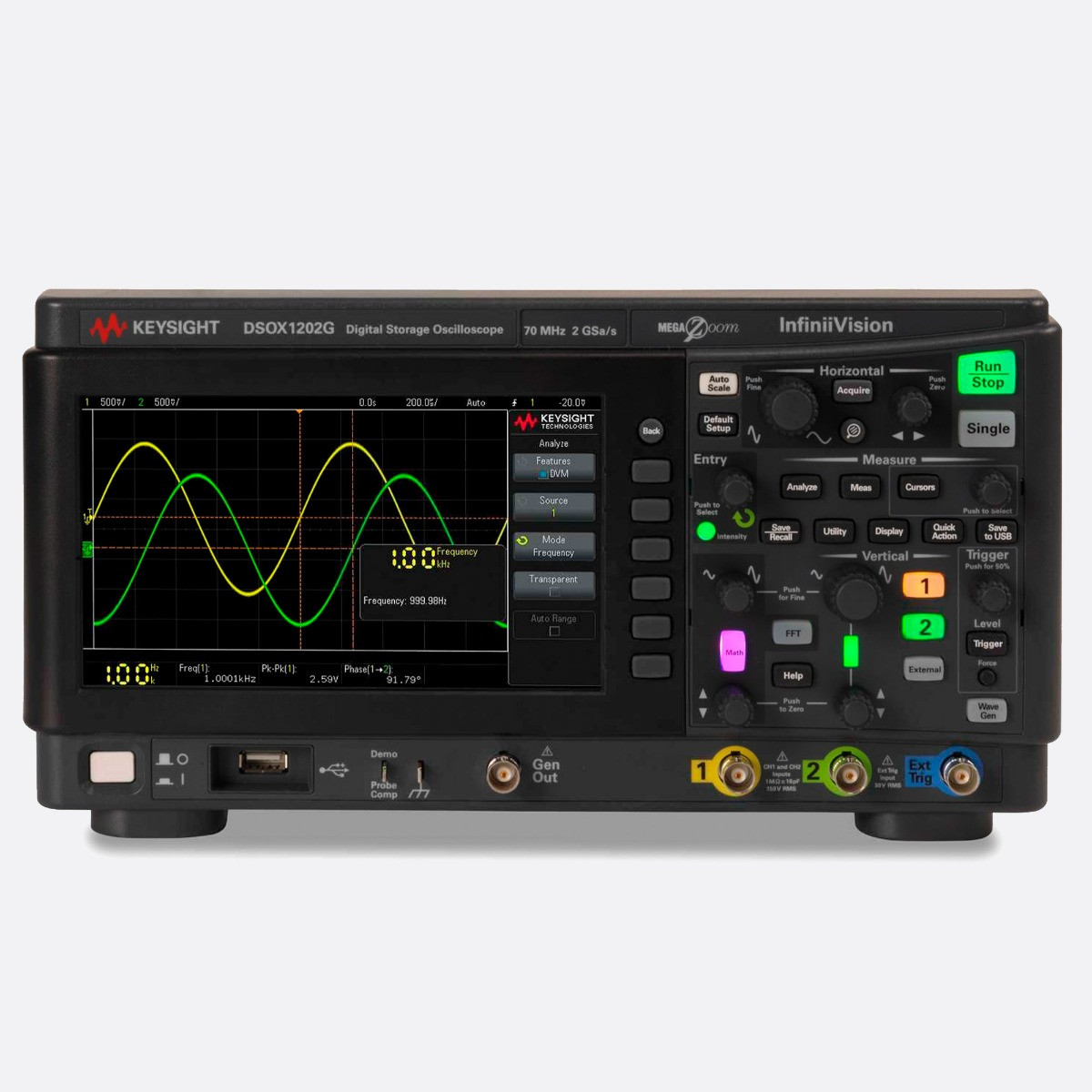

KEYSIGHT - DSOX1202G [70 MHz]Keysight’s InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it’s easy to get professional measurements and accessible expertise at your fingertips. Don’t settle for less – and test to impress.Key features:70 MHz bandwidth Frequency response analysis (Bode gain & phase plots) See more signal detail with 200,000 waveforms/sec update rate Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration

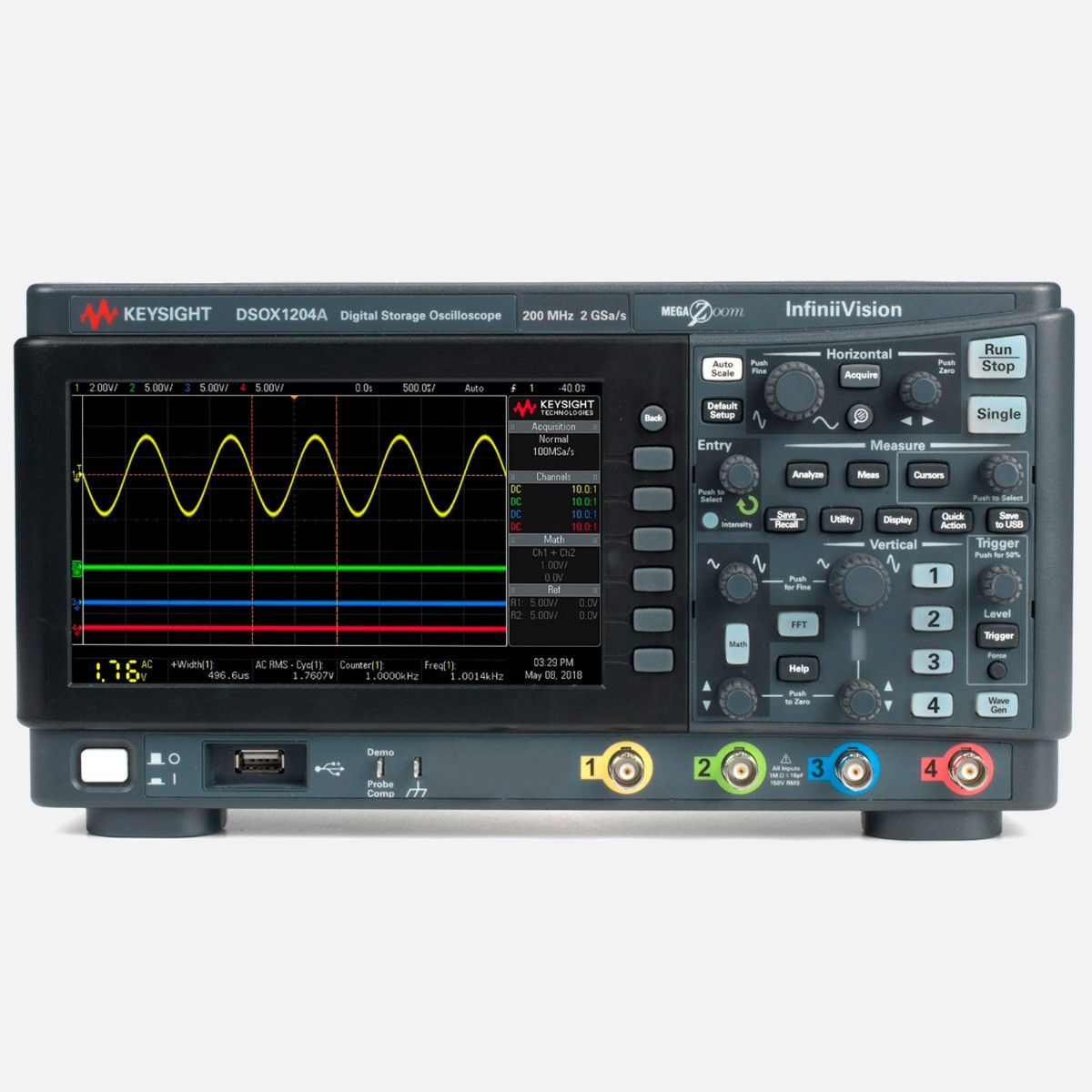

KEYSIGHT - DSOX1204A [70 MHz]Keysight’s InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proventechnology at unbelievably low prices. Now it’s easy to get professional measurements and accessible expertise at your fingertips. Don’t settle for less – and test to impress.Key features: 70 MHz bandwidth See more signal detail with 200,000 waveforms/sec update rate Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals Get professional-level functionality with industry-leading software analysis including standard serialbus analysis for the most popular serial bus standards, and 6-in-1 instrument integration

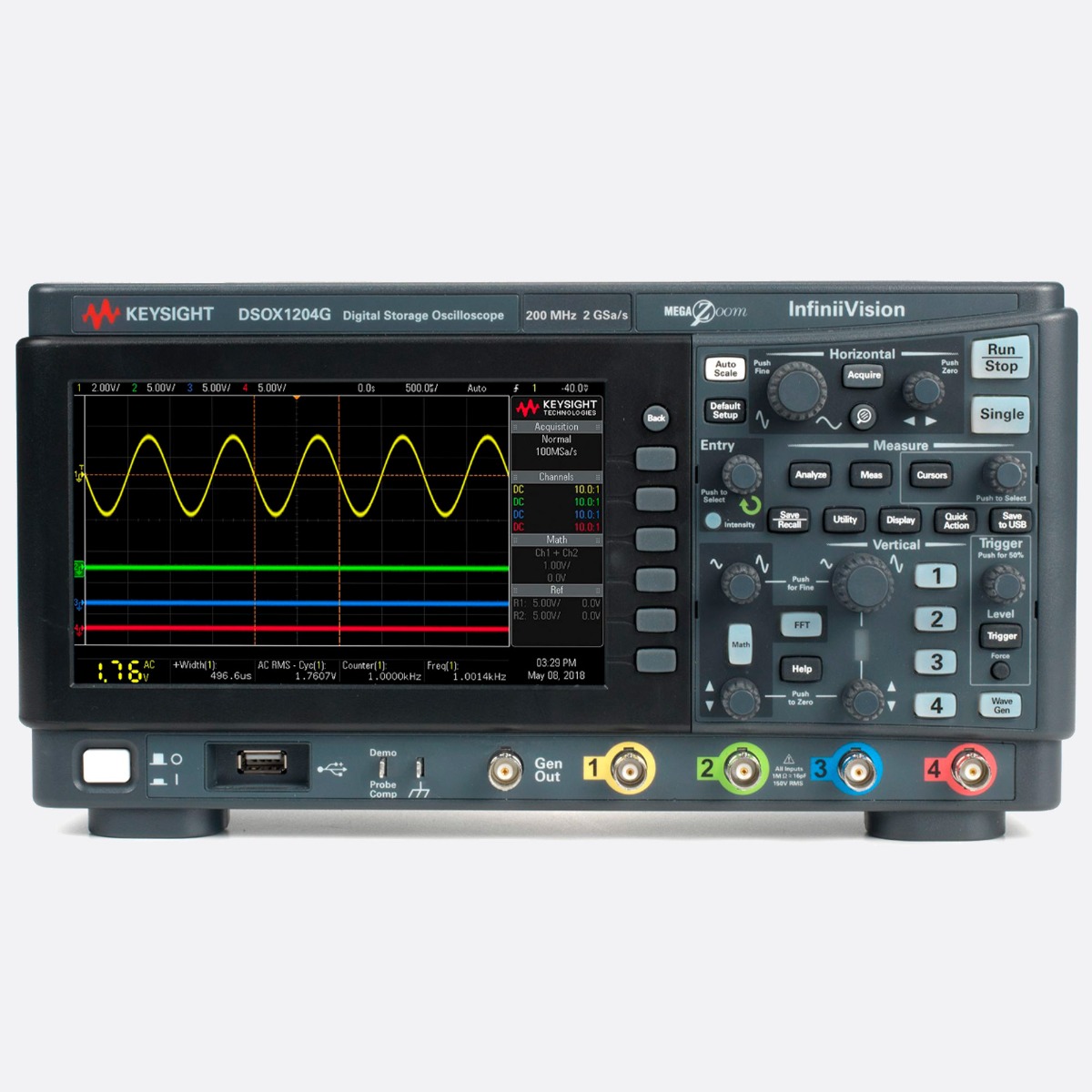

KEYSIGHT - DSOX1204G - Oszilloskop 70 MHz, 4 Channel, Function Generator includedKeysight’s InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it’s easy to get professional measurements and accessible expertise at your fingertips. Don’t settle for less – and test to impress.Key features:- 70 MHz bandwidth Frequency response analysis (Bode gain & phase plots)- See more signal detail with 200,000 waveforms/sec update rate- Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise- Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals- Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration

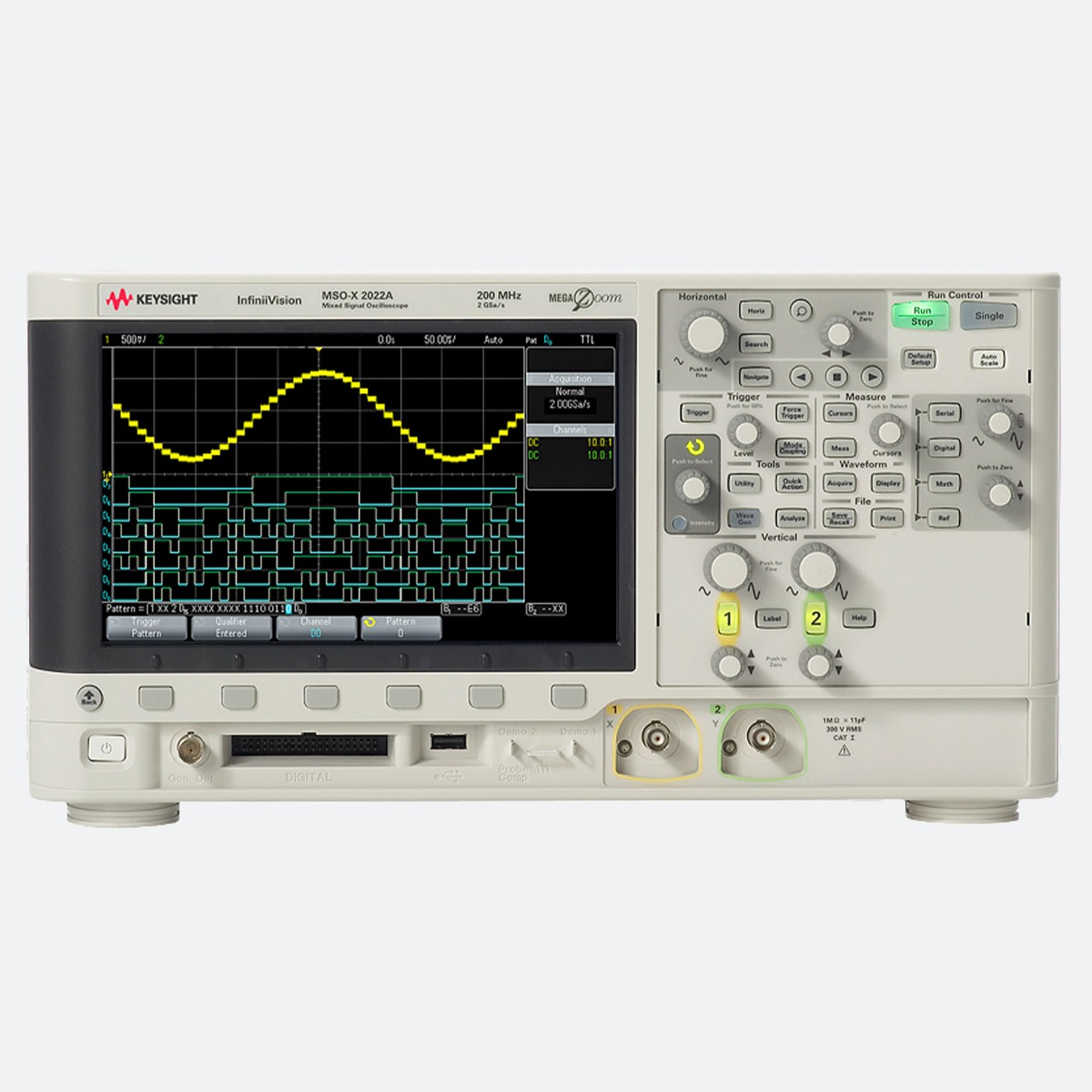

KEYSIGHT - DSOX2002AManchmal benötigen Sie ein einfaches Oszilloskop mit ein wenig mehr Funktionalität - Funktionen wie erweiterte Wellenform-Mathematik, höhere Aktualisierungsraten oder Mixed-Signal-Funktionen. All dies ist in der InfiniiVision 2000 X-Serie verfügbar, damit Sie mit einem Oszilloskop der Einstiegsklasse tiefergehende Analysen durchführen können.Die InfiniiVision 2000 X-Serie verfügt über die patentierte MegaZoom IV Smart-Memory-Technologie von Keysight, die immer aktiviert ist und immer reagiert und die branchenweit schnellste Aktualisierungsrate von bis zu 200.000 Wellenformen pro Sekunde bietet, ohne Kompromisse, wenn Sie Messungen einschalten oder digitale Kanäle hinzufügen. Darüber hinaus bietet die 2000 XSerie 25 automatische Messungen wie Spannung, Zeit und Frequenz sowie 18 mathematische Wellenformfunktionen wie Addieren, Subtrahieren, Multiplizieren, Dividieren und FFT.Die 2000 X-Serie ist das erste Gerät seiner Klasse, das einen integrierten Logik-Timing-Analysator bietet. Digitale Inhalte sind in den heutigen Designs allgegenwärtig, und mit den zusätzlichen 8 integrierten digitalen Timing-Kanälen stehen Ihnen jetzt bis zu 12 Kanäle für zeitkorrelierte Triggerung, Erfassung und Anzeige auf demselben Gerät zur Verfügung. Kaufen Sie ein 2- oder 4-Kanal-DSO und erweitern Sie es jederzeit selbst zu einem MSO mit einer Lizenz, um diese integrierten 8 digitalen Timing-Kanäle zu aktivieren.Die 2000 X-Serie bietet ein integriertes 3-stelliges Voltmeter (DVM) und einen 5-stelligen Frequenzzähler in den Oszilloskopen. Das Voltmeter arbeitet mit denselben Tastköpfen wie die Oszilloskopkanäle, die Messungen sind jedoch vom Triggersystem des Oszilloskops entkoppelt, so dass sowohl die DVM- als auch die getriggerten Oszilloskopmessungen mit demselben Anschluss durchgeführt werden können. Die Ergebnisse des Voltmeters werden immer angezeigt, so dass Sie diese schnellen Charakterisierungsmessungen immer zur Hand haben. Das DVM ist standardmäßig in allen InfiniiVision Oszilloskopen enthalten.Hauptmerkmale:- 70 MHz Bandbreite- 2 analoge Kanäle- Einfache Anzeige Ihrer Signale auf dem 8,5-Zoll-WVGA-Display- Erfassen Sie mehr Daten mit bis zu 1 Mpts Speicher- Sehen Sie mehr Signaldetails mit einer Aktualisierungsrate von 200.000 wfms/s- Erweitern Sie Ihre Messmöglichkeiten mit der vollständigen Aufrüstbarkeit: Fügen Sie jederzeit digitale Kanäle, 20-MHz-Funktionsgenerator, 3-stelliges Voltmeter, seriellen Trigger und Analyse, segmentierten Speicher und Maskentests hinzu

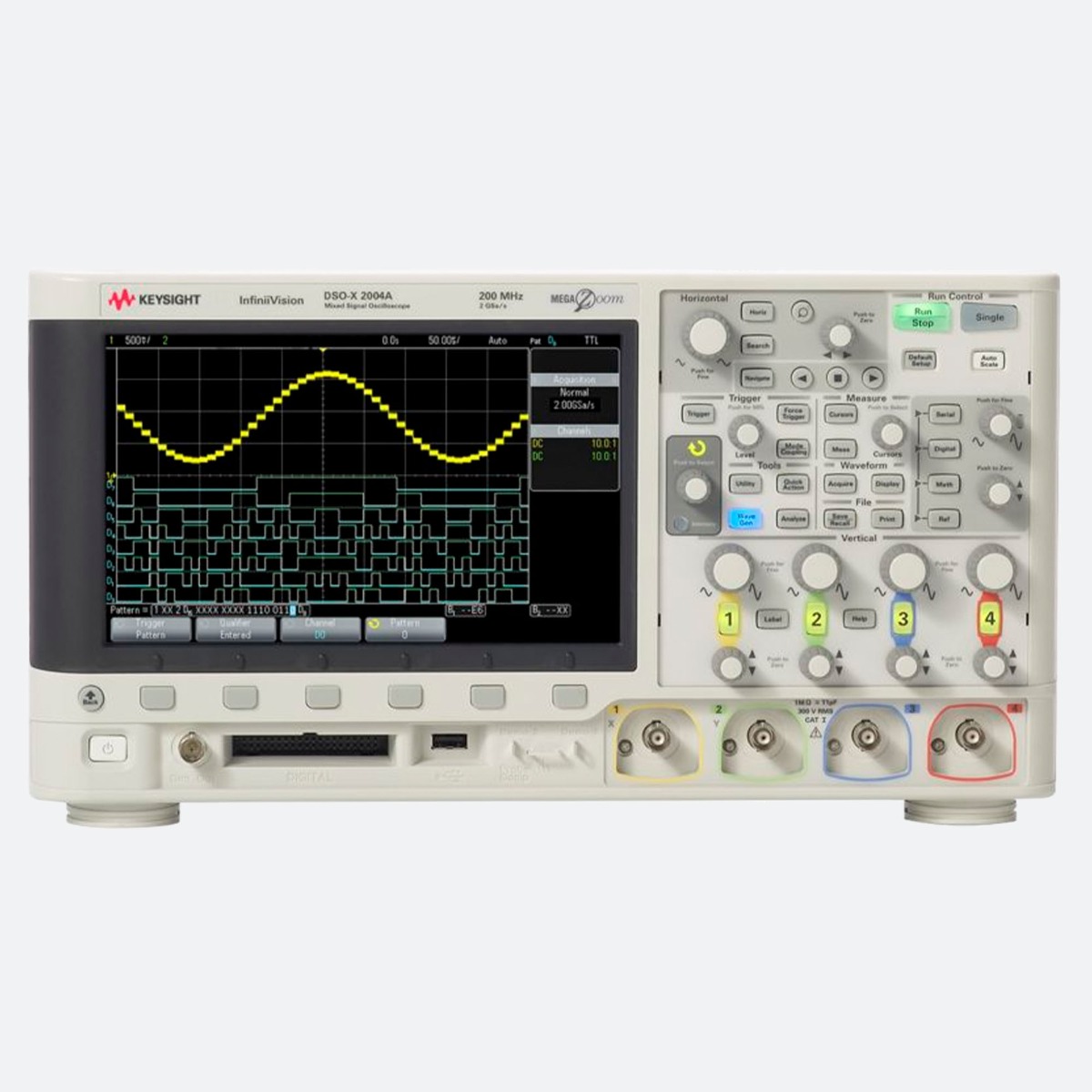

KEYSIGHT - DSOX2024ASometimes you need a basic oscilloscope with a little more functionality — features like advanced waveform math, higher updates rates, or mixed signal capabilities. All of this is available in the InfiniiVision 2000 X-Series to enable you to perform deeper analysis in an entry-level oscilloscope.The InfiniiVision 2000 X-Series features Keysight’s patented MegaZoom IV smart memory technology that is always enabled and always responsive providing the industry’s fastest update rate at up to 200,000 waveforms per second, with no compromise if you turn on measurements or add digital channels. In addition, the 2000 XSeries offers 25 automated measurements such as voltage, time, and frequency as well as 18 waveform math functions including add, subtract, multiply, divide, and FFT.The 2000 X-Series is the first instrument in its class to offer an integrated logic timing analyzer. Digital content is everywhere in today’s designs and with an additional 8 integrated digital timing channels, you now have up to 12 channels of time-correlated triggering, acquisition and viewing on the same instrument. Buy a 2 or 4 channel DSO and at any time, upgrade it yourself to a MSO with a license to turn on those integrated 8 digital timing channels.The 2000 X-Series offers an integrated 3-digit voltmeter (DVM) and 5-digit frequency counter inside the oscilloscopes. The voltmeter operates through the same probes as the oscilloscope channels, however, the measurements are de-coupled from the oscilloscope triggering system so that both the DVM and triggered oscilloscope measurements can be made with the same connection. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips. The DVM is included standard on all InfiniiVision oscilloscopes.Key features:200 MHz bandwidth 4 analog channels Easily view your signals on the 8.5-inch WVGA display Capture more data with up to 1 Mpts memory See more signal detail with 200,000 wfms/s update rate Expand your measurement capabilities with full upgradability: Add digital channels, 20 MHz function generator, 3-digit voltmeter, serial trigger and analysis, segmented memory & mask testing at any time

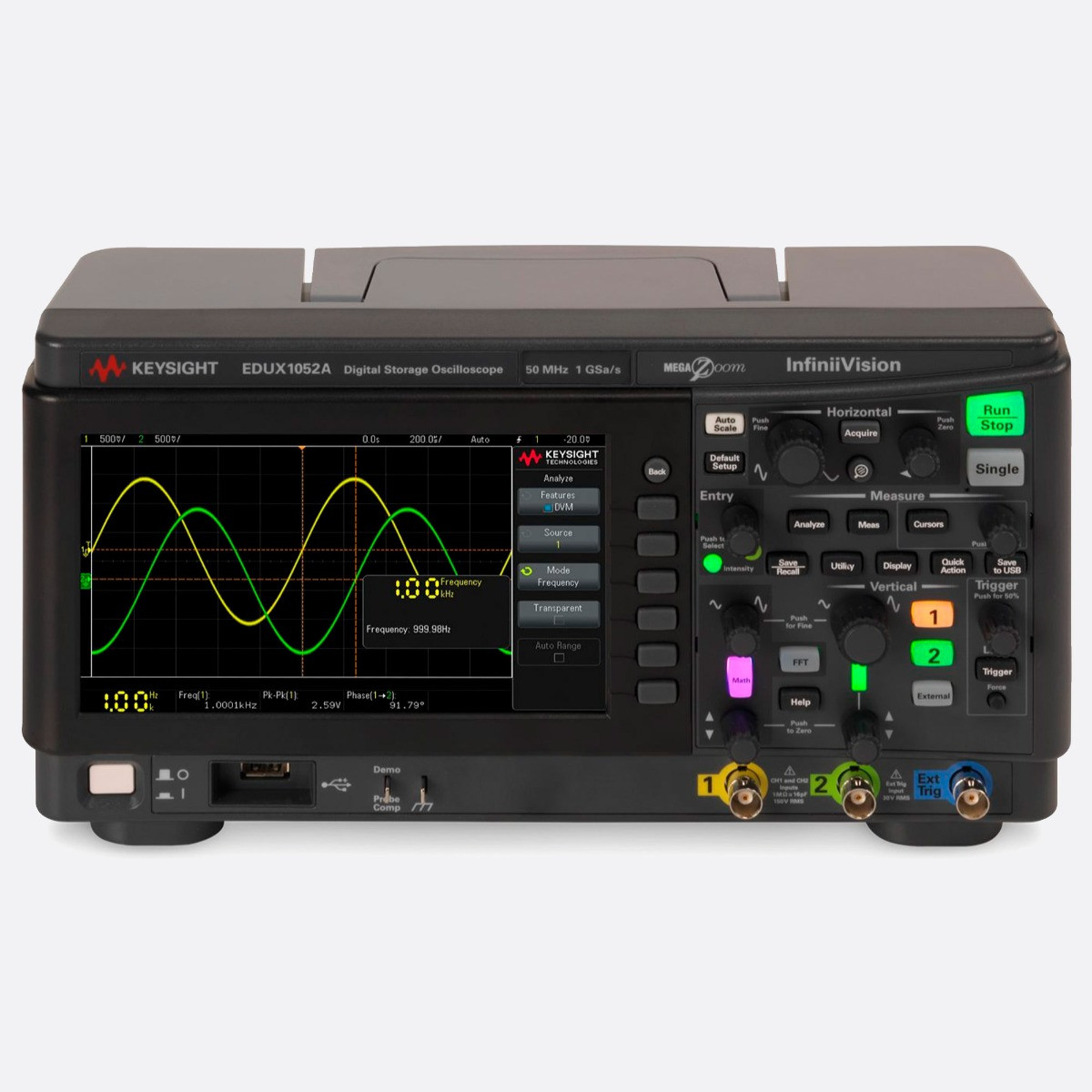

KEYSIGHT - EDUX1052AProvide a quality education for students and prepare them for industry with professional level instruments. The 1000 X-Series leverages the same technology as our higher-end oscilloscopes, allowing students to learn on the same hardware and software being used in leading R&D labs. The 1000 X-Series is a family of low-cost oscilloscopes that don’t compromise on quality. Each model has measurement and standard software analysis capability that rivals oscilloscopes 3x the price. The 1000 X-Series is a powerful protocol analyzer that enables hardware-based specialized serial communication analysis (standard). Other vendors’ oscilloscopes use software post-processing techniques that slow down the waveform and decode update rate, but the 1000 X-Series has faster decoding based on hardware technology that enhances scope usability and the probability of capturing infrequent serial communication errors. The EDUX models support I2C and UART/RS232 (standard).The 1000 X-Series has an integrated 3-digit voltmeter (DVM) inside each oscilloscope. The voltmeter operates through probes connected to the oscilloscope channels, but its measurement is decoupled from the oscilloscope triggering system so both the DVM and triggered oscilloscope measurements can be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without configuring the oscilloscope capture. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips. The built-in DVM comes standard in 1000 X-Series oscilloscopes.Key features:- 50 MHz bandwidth- 1 GSa/s sample rate- 200k points memory- Make professional measurements, math, FFT, and serial protocol analysis, all standard- Quickly learn how to use with built-in help and training signals- See more signal detail at 100,000 waveforms/sec update rate

KEYSIGHT - HD302MSOOscilloscope, 2 Channels, 200 MHz, 14Bit, 20Mpts/Channel.The HD3 Series brings Keysight’s industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor. Paired with our fast, uncompromised waveform update rate and twenty-five times more memory, the HD3 Series can capture small signals with high vertical resolution.See What You’ve Been Missing with Portable PrecisionMeet the new generation of Keysight InfiniiVision oscilloscopes, the HD3 Series. The HD3 was created with high-performance technology leveraged from our high-speed UXR Series oscilloscopes, now making precision available in a much more portable form factor. With the all-new architecture of the HD3 (including a custom 14-bit ADC and low noise front end), you can analyze all signals in your design with high vertical accuracy. This ensures you make the most accurate measurements possible and have the most realistic view into the signals inside your device. You can achieve even greater accuracy (5x better) with up to 16 bits of resolution using the built-in per channel bandwidth filters. Need to use the full bandwidth to 1 GHz? You will still get extremely high accuracy at the full bandwidth, with the ability to zoom to 500 uV/div.See What You’ve Been Missing with Custom TechnologyThe HD3 Series uses custom components optimized specifically for oscilloscope measurements. Keysight’s R&D team designed a brand-new 14-bit ADC, an all-new ASIC, other support components, and an entirely new architecture for the signal to flow through. Because Keysight designs these components rather than using off-the-shelf components, our hardware works much faster and more efficiently since it is designed specifically for oscilloscopes. Part of this new architecture also includes deep memory with dedicated memory chips for every channel (100 Mpts). This means there is no interleaving between channels. You can have all four channels turned on and still get the maximum memory and sample rate on every channel. Our new custom ASIC (MegaZoom 5) enables the HD3 to have hardware-based functions such as zone trigger, serial decoding, and mask testing. Custom hardware also makes it possible for us to create new custom software, such as the Fault Hunter software application. Simply run Fault Hunter and detect any glitches or errors on your signal.See What You’ve Been Missing with Versatile FunctionalityDive deeper than ever before with more flexibility in the InfiniiVision user interface. Not only did we leverage the hardware from our high-performance oscilloscopes, but we also took some of the more advanced user interface capabilities and added them to the new InfiniiVision user interface. With more menus and user customization, you can set up the scope to be customized to your exact testing requirements. The custom grid display, favorites bar, and automatic actions make it even easier to dive deep into your characterization and view results quickly. All models can be upgraded in bandwidth or memory using immediate license upgrades. There are no returns to factory required for any upgrades. All models are also already equipped with these standard functions that typically cost thousands of dollars:• Frequency response analysis• Fault Hunter• Zone trigger• Segmented memory• MSO• Mask testing• Histograms• FFT, and more

KEYSIGHT - HD304MSO- Oscilloscope, 4 Channels, 200 MHz, 14Bit, 20Mpts/Ch.The HD3 Series brings Keysight’s industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor. Paired with our fast, uncompromised waveform update rate and twenty-five times more memory, the HD3 Series can capture small signals with high vertical resolution.See What You’ve Been Missing with Portable Precision Meet the new generation of Keysight InfiniiVision oscilloscopes, the HD3 Series. The HD3 was created with high-performance technology leveraged from our high-speed UXR Series oscilloscopes, now making precision available in a much more portable form factor. With the all-new architecture of the HD3 (including a custom 14-bit ADC and low noise front end), you can analyze all signals in your design with high vertical accuracy. This ensures you make the most accurate measurements possible and have the most realistic view into the signals inside your device. You can achieve even greater accuracy (5x better) with up to 16 bits of resolution using the built-in perchannel bandwidth filters. Need to use the full bandwidth to 1 GHz? You will still get extremely high accuracy at the full bandwidth, with the ability to zoom to 500 uV/div. See What You’ve Been Missing with Custom Technology The HD3 Series uses custom components optimized specifically for oscilloscope measurements. Keysight’s R&D team designed a brand-new 14-bit ADC, an all-new ASIC, other support components, and an entirely new architecture for the signal to flow through. Because Keysight designs these components rather than using off-the-shelf components, our hardware works much faster and more efficiently since it is designed specifically for oscilloscopes. Part of this new architecture also includes deep memory with dedicated memory chips for every channel (100 Mpts). This means there is no interleaving between channels. You can have all four channels turned on and still get the maximum memory and sample rate on every channel. Our new custom ASIC (MegaZoom 5) enables the HD3 to have hardware-based functions such as zone trigger, serial decoding, and mask testing. Custom hardware also makes it possible for us to create new custom software, such as the Fault Hunter software application. Simply run Fault Hunter and detect any glitches or errors on your signal. See What You’ve Been Missing with Versatile Functionality Dive deeper than ever before with more flexibility in the InfiniiVision user interface. Not only did we leverage the hardware from our high-performance oscilloscopes, but we also took some of the more advanced user interface capabilities and added them to the new InfiniiVision user interface. With more menus and user customization, you can set up the scope to be customized to your exact testing requirements. The custom grid display, favorites bar, and automatic actions make it even easier to dive deep into your characterization and view results quickly. All models can be upgraded in bandwidth or memory using immediate license upgrades. There are no returns to factory required for any upgrades. All models are also already equipped with these standard functions that typically cost thousands of dollars: • Frequency response analysis • Fault Hunter • Zone trigger • Segmented memory • MSO • Mask testing • Histograms • FFT, and more

Pico Technology - PicoScope 2204A - PicoScope 2204A, 2 Channels, 10 MHz Bandwith, 100 MS/s Sample Rate You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box. Mixed signal models also add a 16 channel logic analyzer. A complete electronics lab in one compact, low-cost, USB-powered unit.The PicoScope 2000A models deliver unbeatable value for money and are ideal for education, hobby and field service use. In the lab the low cost allows one scope per person rather than having to share.The PicoScope 2000B models have the added benefits of deep memory (up to 128 MS), higher bandwidth (up to 100 MHz) and faster waveform update rates. PicoScope 2000B models give you the performance to carry out advanced analysis of your waveforms. They are ideal for design, debug and serial decoding.Features:- 2 analog Channels- 10 MHz Bandwidth- 100 MS/s Sample Rate- 8 kS Memory- Includes Waveform Generator- USB-Interface for communication and powerIncludes::- USB 2.0 (USB 3.0/3.1 compatible) cable- 2 passive probes switchable x1/x10- Quick start guide

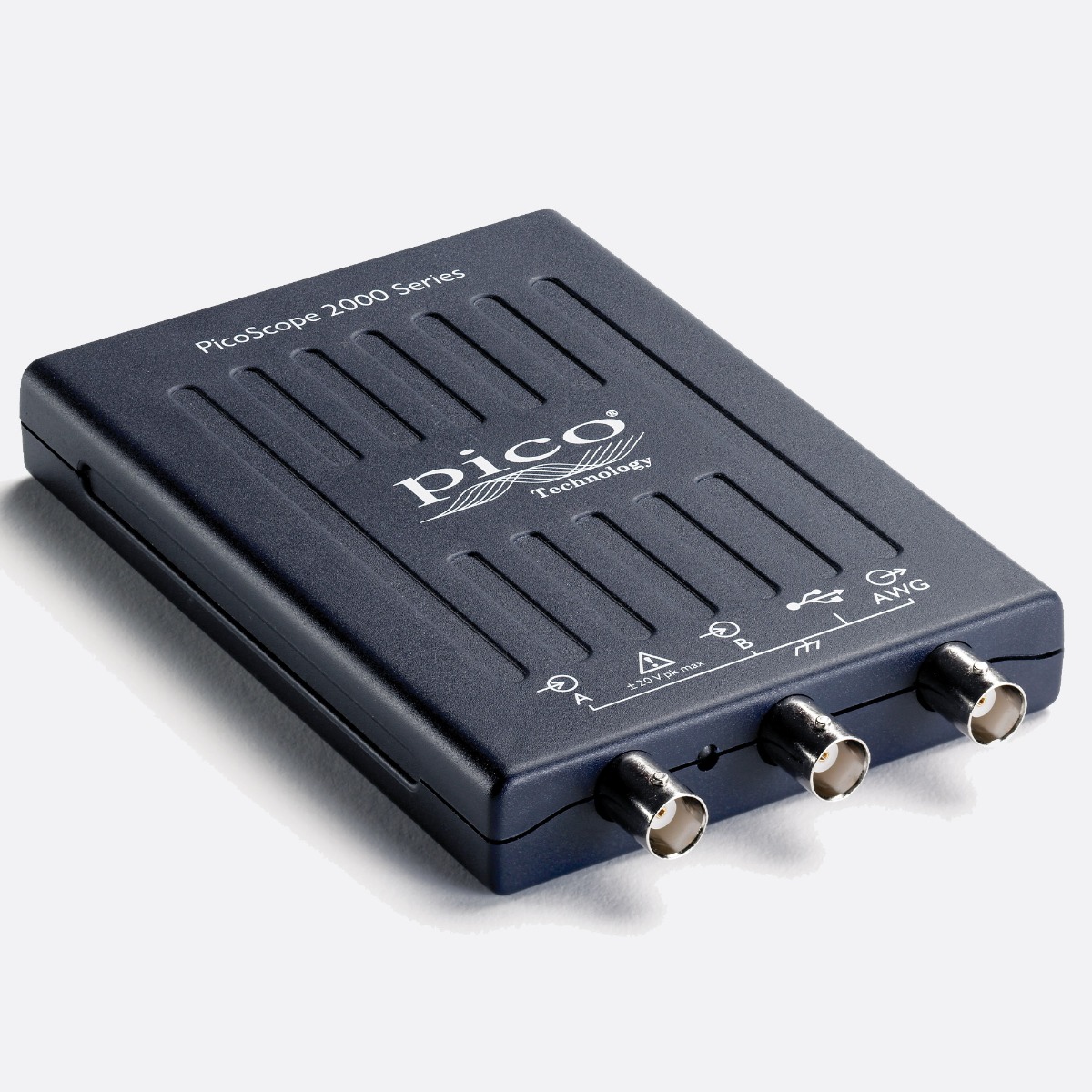

PICO TECHNOLOGY -  PicoScope 2204A-D2 - PicoScope 2204A-D2, 2 channel 10 MHz, 8-bit oscilloscope (no probes)

PICO TECHNOLOGY -  PicoScope 2205A - PicoScope 2205A, 2 channel 25 MHz, 8-bit oscilloscope with probes

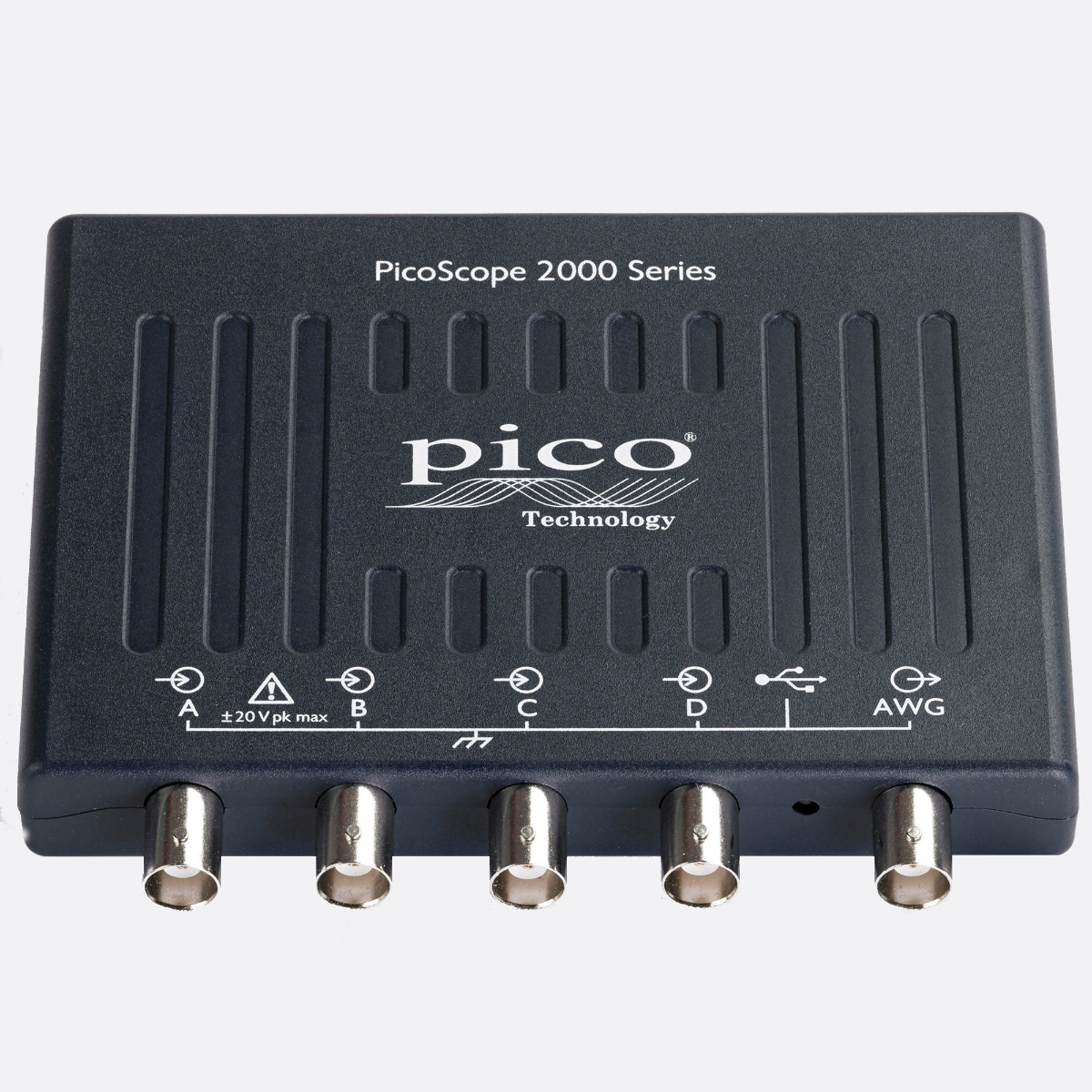

PICO TECHNOLOGY -  PicoScope 2406B - PicoScope 2406B, 4 channel 50MHz

PICO TECHNOLOGY - PicoScope 2408B  - PicoScope 2408B, 4 channel 100MHz

PICO TECHNOLOGY -  PicoScope 3206D - PicoScope 3206D, 2 channel, 200 MHz, 8-bit oscilloscope with probes

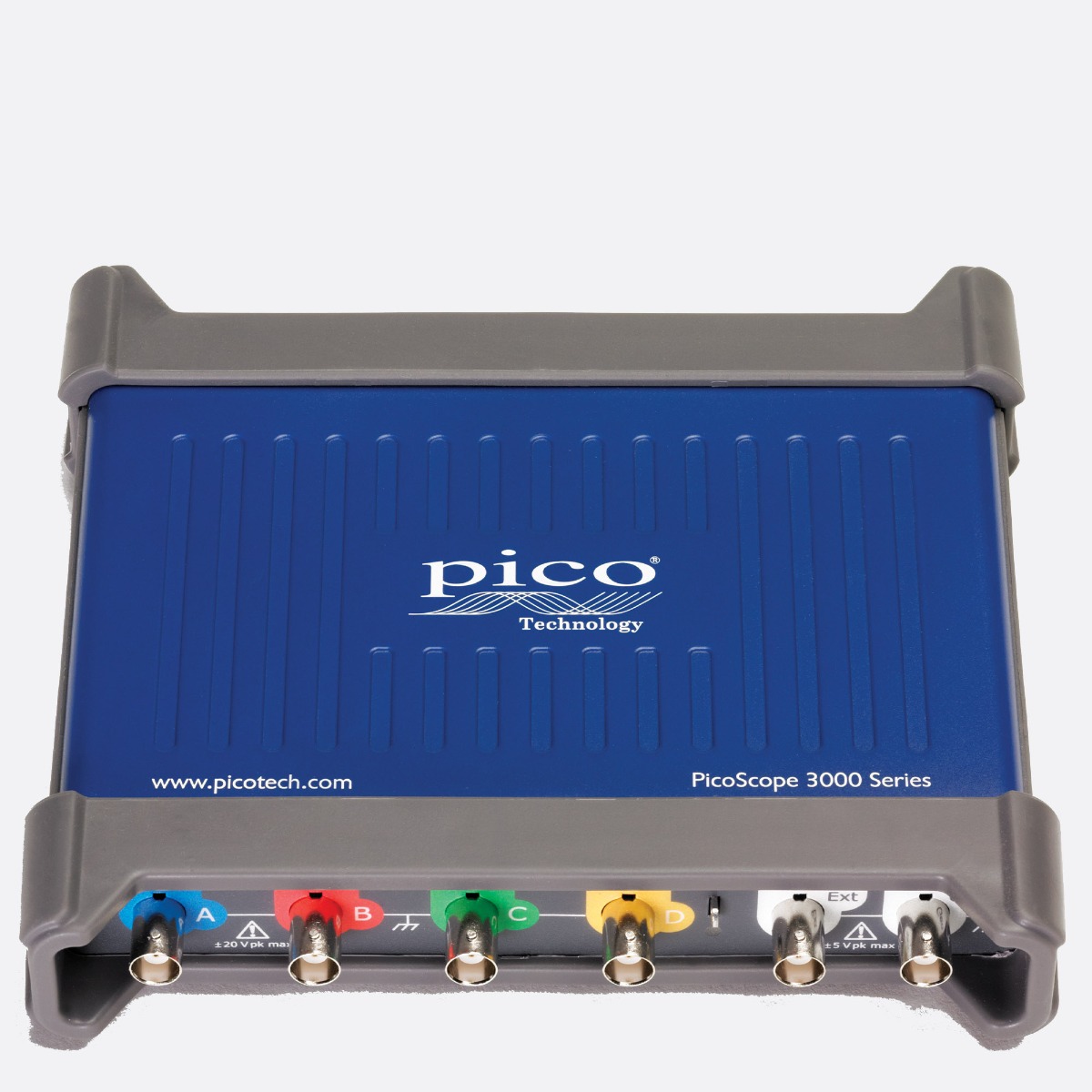

PICO TECHNOLOGY -  PicoScope 3406D PicoScope 3406D, 4 channel, 200 MHz, 8-bit oscilloscope with probes

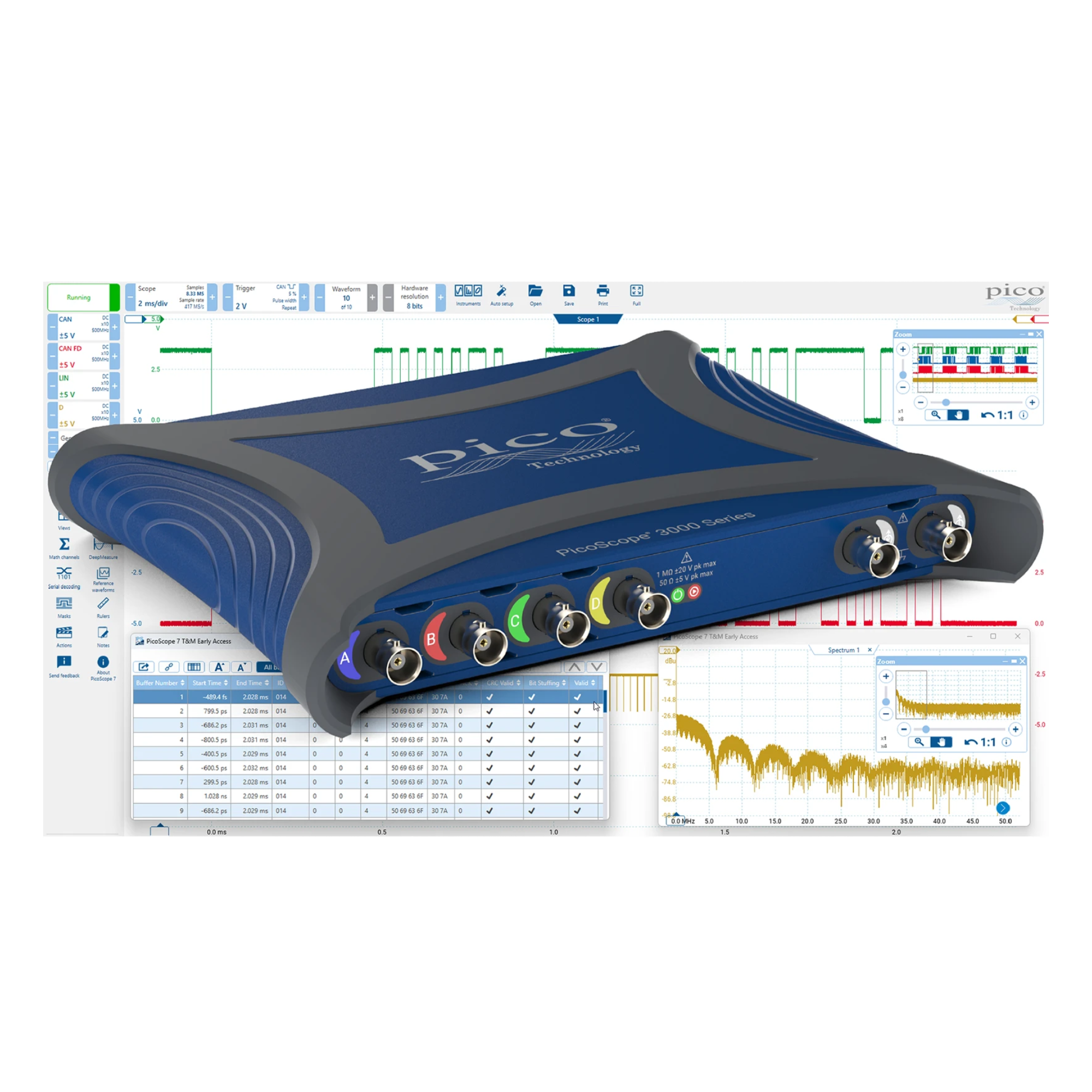

PICO - PicoScope 3418E - PicoScope 3418E, Oscilloscope 4 Channels, 500 MHz, 8 Bit, max. 5 GS/s Where power and performance meet portability Once again, Pico is redefining PC-based oscilloscopes with up to 500 MHz bandwidth and 5 GS/s in a compact, portable USB-powered package. The PicoScope 3000E Series is a range of USB-powered PC oscilloscopes which are small, light, portable and provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move. Supported by the advanced PicoScope 7 Test and Measurement software, the PicoScope 3000E Series enables the rapid cost-effective debug and performance validation of complex analog and power electronic designs. It also offers an ideal package for many other applications including embedded systems design, research, test, education, service and repair. High bandwidth, high sampling rate, deep memory With compact size, low cost and input bandwidths up to 500 MHz, there is no compromise on performance. This bandwidth is matched by a real-time sampling rate of up to 5 GS/s, enabling detailed display of high frequency signal detail. Many other oscilloscopes have high maximum sampling rates, but without deep memory they cannot sustain these rates on long timebases. The PicoScope 3000E Series offers up to 2 GS of capture memory, enabling the 500 MHz PicoScope 3418E to sample at 5 GS/s all the way down to 20 ms/div (200 ms total capture time). The PicoScope 3000E Series includes a range of powerful tools to make the most of this huge waveform memory. Easy-to-use zoom functions let you zoom and reposition the display by simply dragging with the mouse or touchscreen, while hardware acceleration ensures you see every glitch in huge waveforms regardless of the zoom level.Memory segmentation lets you capture thousands of waveforms in quick succession and view them in the waveform buffer navigator, filtering them using criteria such as mask limit testing or measurement limits to drill down to the waveforms you need to see. More advanced tools such as serial decoding and DeepMeasureTM work to analyze data packets or events across all waveform buffers in the deep memory, making the PicoScope 3000E Series some of the most capable oscilloscopes on the market. FEATURES:- 350 MHz or 500 MHz with 5 GS/s USB powered PC oscilloscopes- 10-bit resolution (14 bits using enhanced resolution)- 2 GS ultra-deep capture memory- Function/arbitrary waveform generator included- Compact, portable and USB powered- 40 serial protocol decoders included as standard- Segmented memory, persistence and fast waveform updates- Advanced math, measurements, masks and digital triggering- PicoScope 7 for Windows ® , Mac ® & Linux® with free updates- Support for LabView ® , MATLAB® and writing your own code- 1 Probe per Channel included in each Kit - 5-year warranty and free technical support

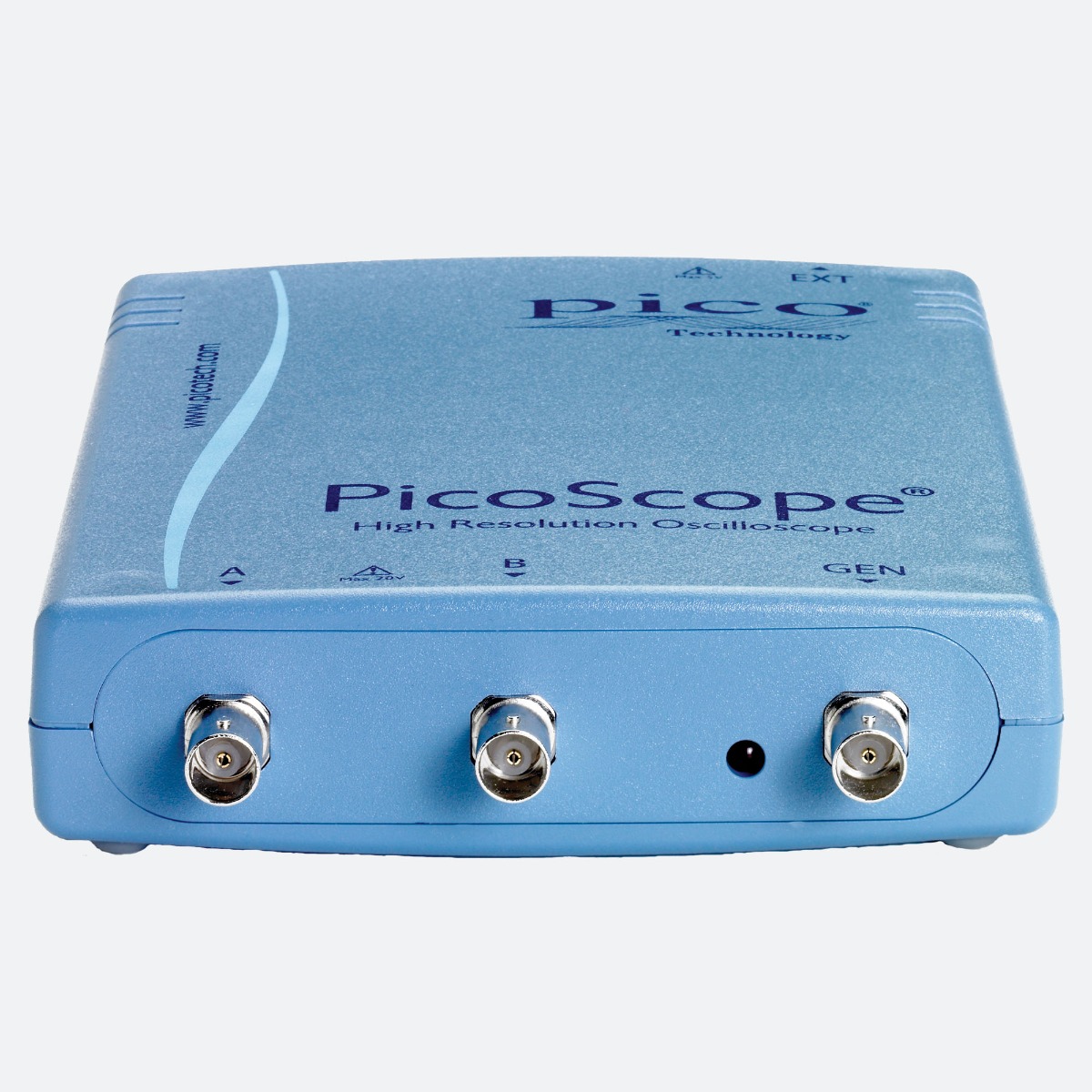

PICO TECHNOLOGY -  PicoScope 4262 - PicoScope 4262, 2 channel, 16-bit oscilloscope with probes

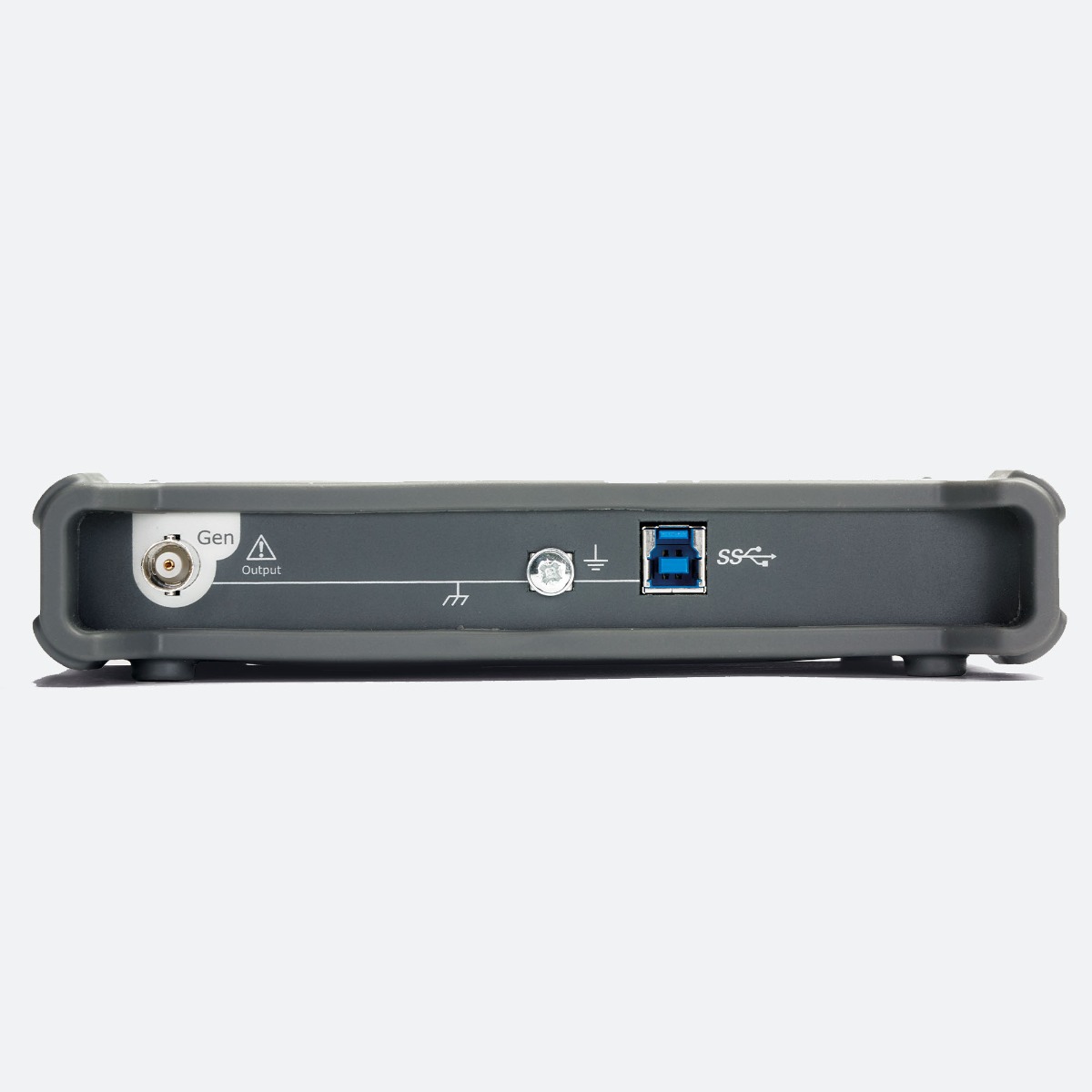

PICO TECHNOLOGY -  PicoScope 4424A - PicoScope 4424A 4 channel 20MHz USB 3

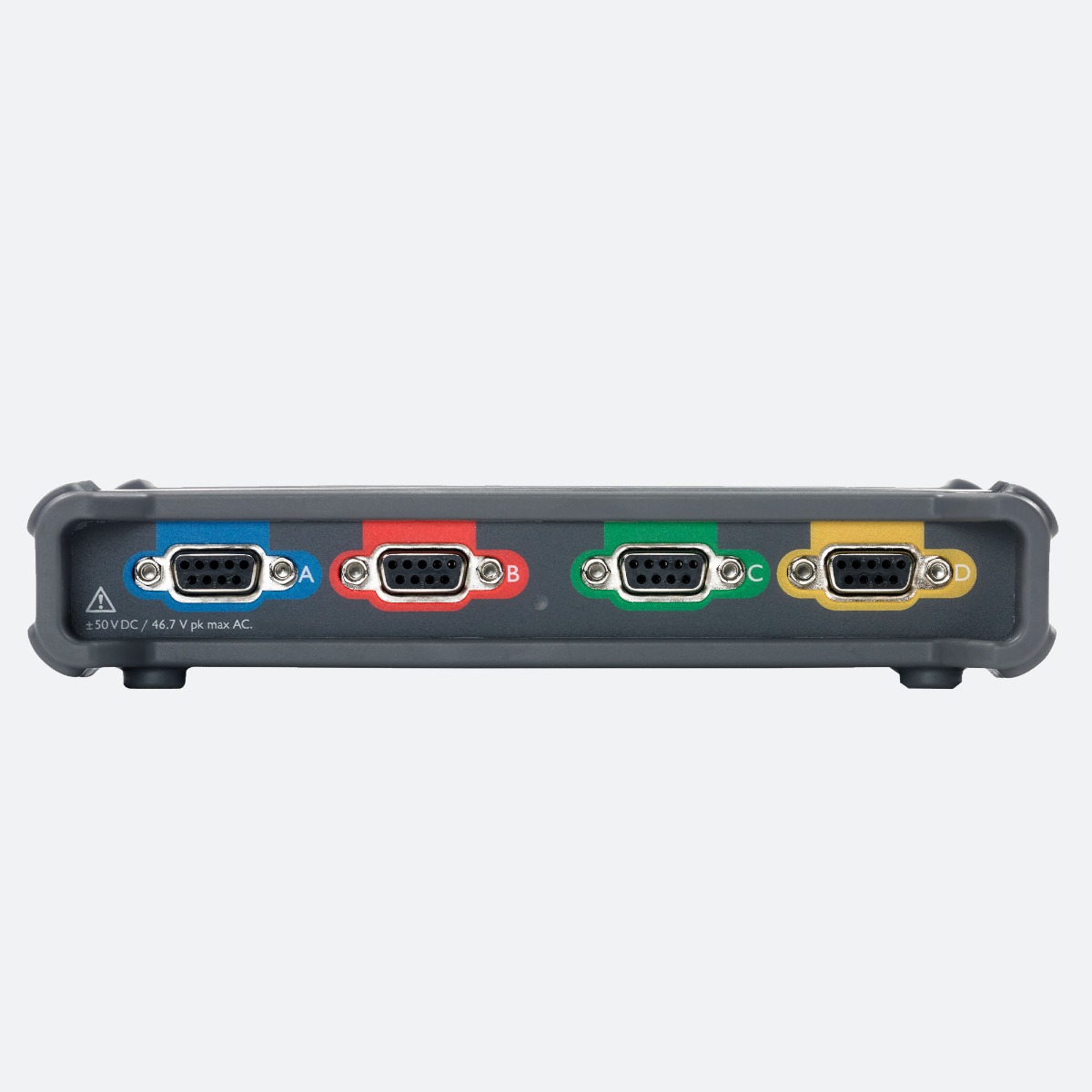

PICO TECHNOLOGY -  PicoScope 4444 - PicoScope 4444, scope only

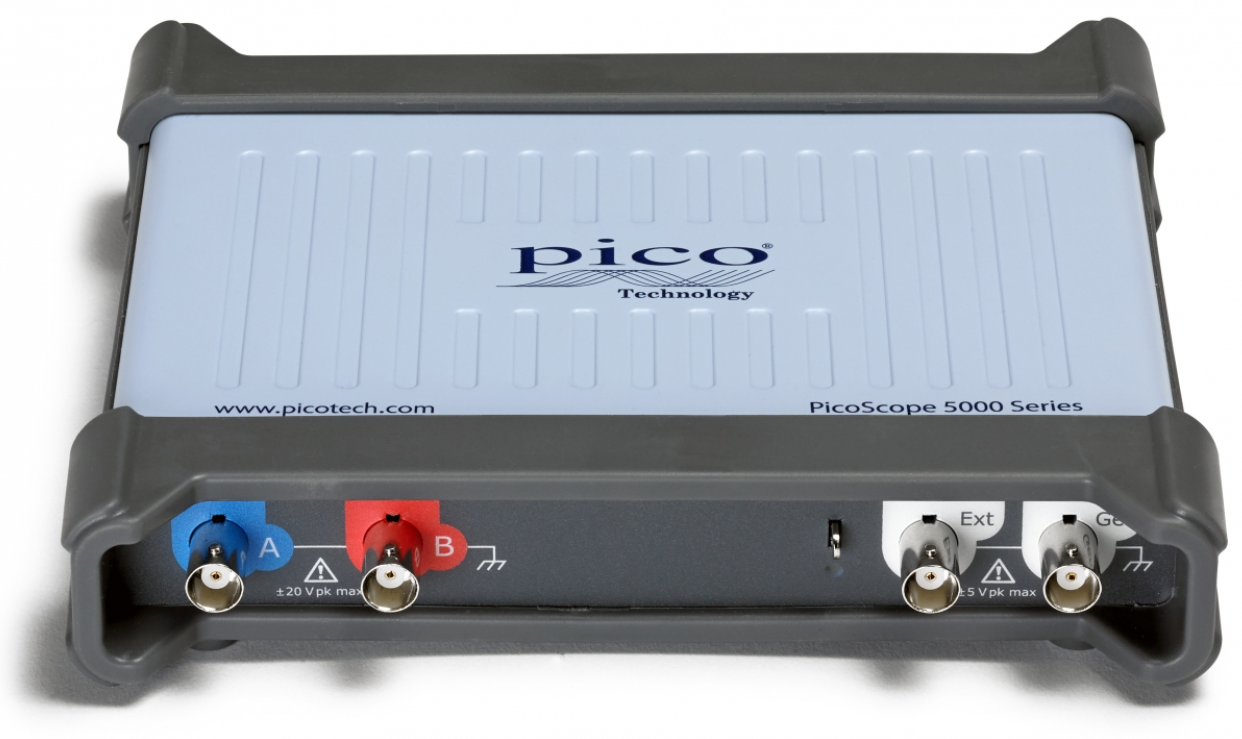

PICO Technology -  PicoScope 5244D - PicoScope 5244D 200 MHz 2 channel oscilloscope

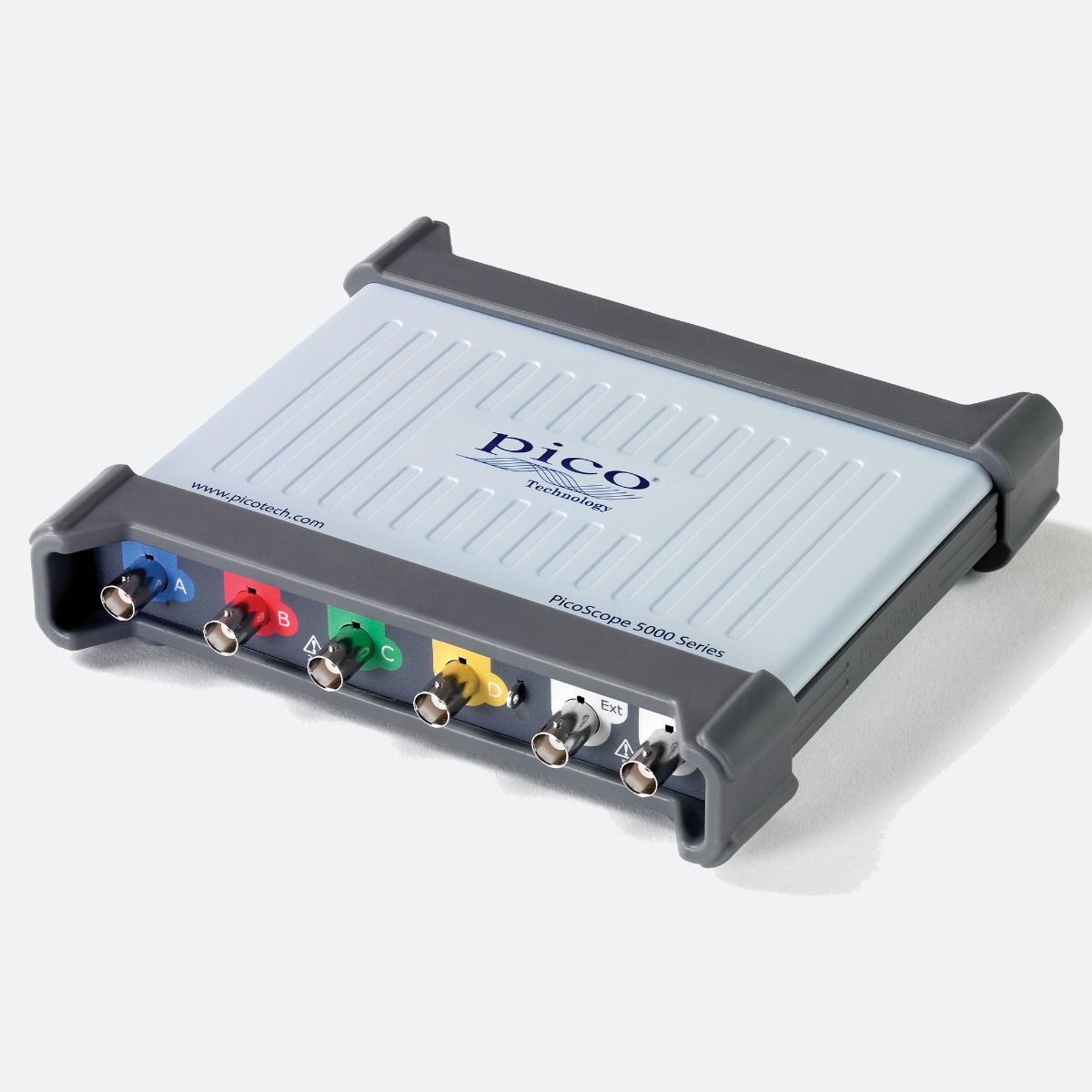

PICO TECHNOLOGY -  PicoScope 5442D - PicoScope 5442D, 60 MHz 4 channel oscilloscope

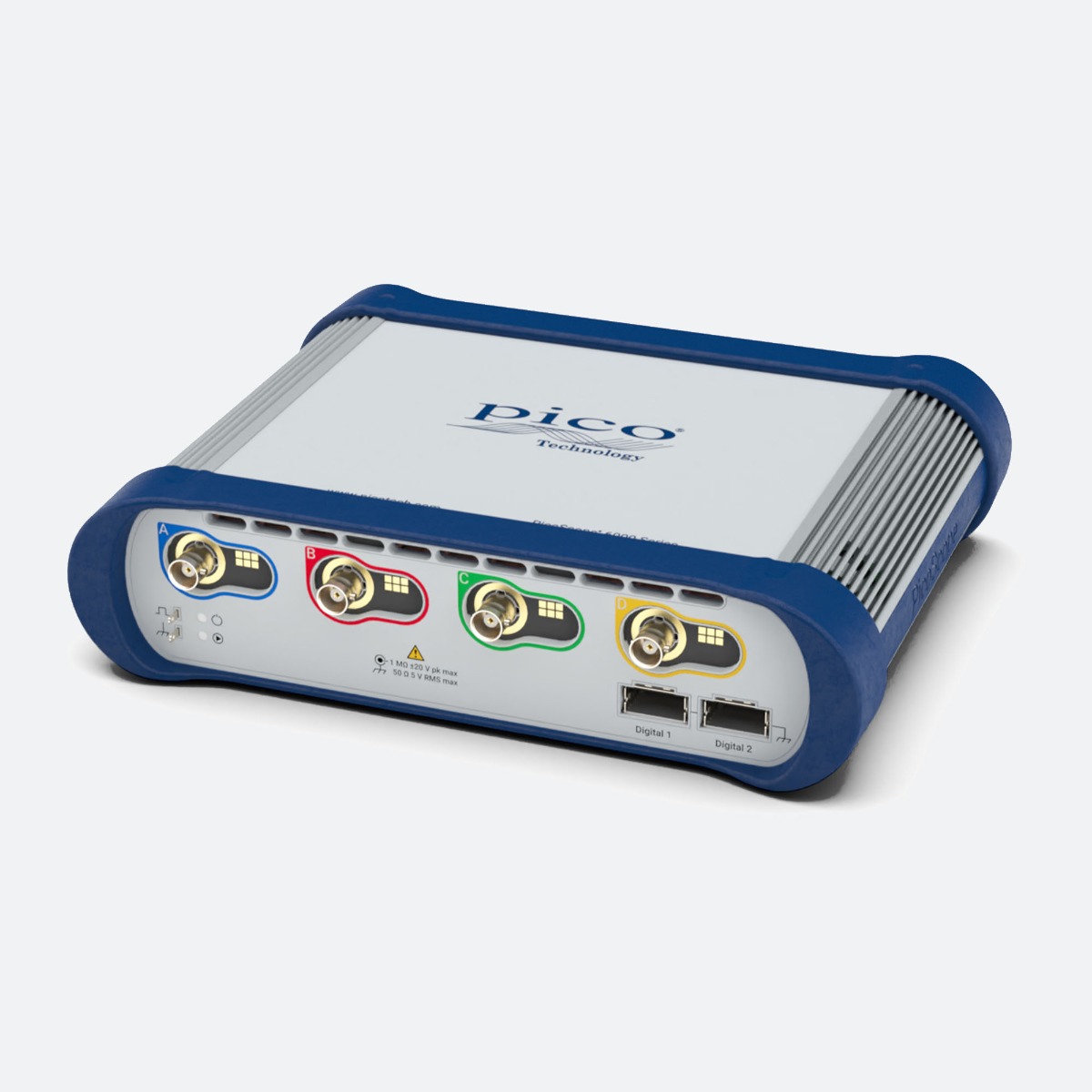

PICO TECHNOLOGY -  PicoScope 6403E - PicoScope 6403E 300 MHz, 4 channel, 8-bit

PICO TECHNOLOGY -  PicoScope 6404E - PicoScope 6404E, 500 MHz, 4 channel, 8-bit
